SY58605U Datasheet - Micrel Semiconductor

LVDS Buffer

SY58605U Features

* Precision Edge®

* Precision 325mV LVDS buffer

* Guaranteed AC performance over temperature and voltage:

* DC-to > 3.2Gbps throughput

SY58605U General Description

The SY58605U is a 2.5V, high-speed, fully differential LVDS buffer optimized to provide less than 10pspp total jitter. The SY58605U can process clock signals as fast as 2GHz or data patterns up to 3.2Gbps. The differential input includes Micrel’s unique, 3-pin input termination architecture that int.

SY58605U Datasheet (618.87 KB)

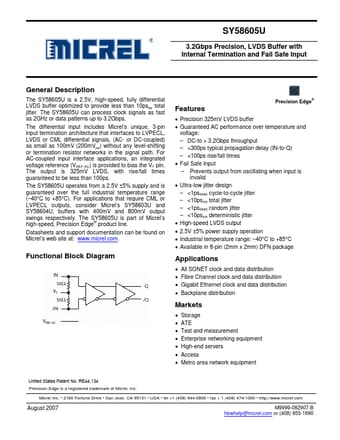

SY58605U Datasheet Preview — Preview of SY58605U PDF

Datasheet Details

Part number:

SY58605U

Manufacturer:

Micrel Semiconductor

File Size:

618.87 KB

Description:

Lvds buffer.
