SY5867 - Dimming Interface Converter

Silergy

Datasheet Details

Part number	SY5867
Manufacturer	Silergy
File Size	807.05 KB
Description	Dimming Interface Converter
Datasheet	SY5867-Silergy.pdf

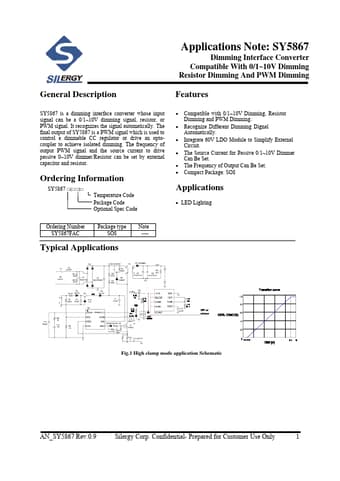

Applications Note: SY5867 Dimming Interface Converter Compatible With 0/1~10V Dimming Resistor Dimming And PWM Dimming

SY5867 is a dimming interface converter whose input signal can be a 0/1~10V dimming signal, resistor, or PWM signal. It recognizes the signal automatically. The final output of SY5867 is a PWM signal which is used to control a dimmable CC regulator or drive an optocoupler to achieve isolated dimming. The frequency of output PWM signal and the source current to drive passive 0~10V dimmer/Resistor can be set by external capacitor and resistor. Ordering Information SY5867.
(.
