SY55851A Datasheet - Microchip

3.0GHz CML AnyGate Any Logic

SY55851A Features

* Guaranteed AC Parameters Over Temperature: - fMAX > 3.0GHz - tr / tf < 100ps - Propagation delay < 280ps

* Guaranteed Operation Over -40° to +85°C Temperature Range

* Wide Supply Voltage Range: 2.3V to 3.6V

* Single IC Provides 8 Logic Functions

* 2:1 MUX Ca

SY55851A General Description

The SY55851A is a highly flexible, universal logic gate capable of up to 3.0GHz operation. This AnyGate differential logic device will produce all possible logic functions of two Boolean variables. It can be configured as any of the following gates: AND, NAND, OR, NOR, XOR, XNOR, DELAY, NEGATION (NO.

SY55851A Datasheet (815.04 KB)

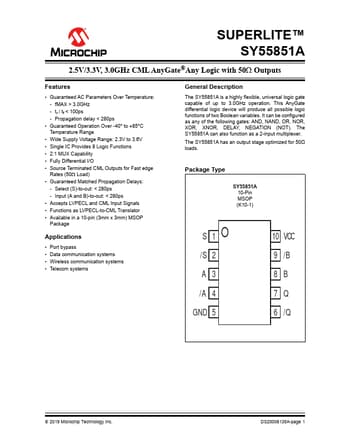

Preview of SY55851A PDF

Datasheet Details

Part number:

SY55851A

Manufacturer:

Microchip ↗

File Size:

815.04 KB

Description:

3.0ghz cml anygate any logic.
