SY55857L ANY INPUT-to-LVPECL DUAL TRANSLATOR

Micrel Semiconductor

Description

Micrel, Inc.3.3V, 2.5Gbps ANY INPUT-to-LVPECL DUAL TRANSLATOR SuperLite™ SuperLSYit5e5™857L SY55857L .
The SY55857L is a fully differential, high-speed dual translator optimized to accept any logic standard from single-ended TTL/CMOS to differential LVD.

📥 Download Datasheet

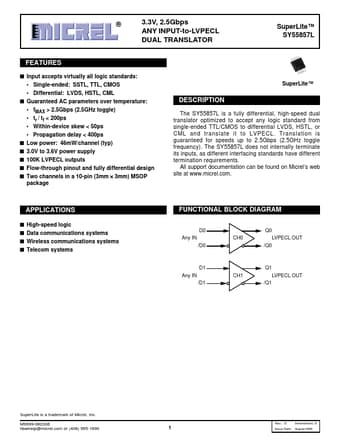

SY55857L Datasheet Preview — Preview of SY55857L PDF

Datasheet Specifications

Part number: SY55857L
Manufacturer: Micrel Semiconductor
File Size: 64.20 KB
Datasheet: SY55857L_MicrelSemiconductor.pdf
Description: ANY INPUT-to-LVPECL DUAL TRANSLATOR

Features

* s Input accepts virtually all logic standards:
* Single-ended: SSTL, TTL, CMOS
* Differential: LVDS, HSTL, CML s Guaranteed AC parameters over temperature:
* fMAX > 2.5Gbps (2.5GHz toggle)
* tr / tf < 200ps
* Within-device skew < 50ps
* Propagation del

Applications

* s High-speed logic s Data communications systems s Wireless communications systems s Telecom systems FUNCTIONAL BLOCK DIAGRAM D0 Any IN /D0 CH0 Q0 LVPECL OUT /Q0 D1 Any IN /D1 CH1 Q1 LVPECL OUT /Q1 SuperLite is a trademark of Micrel, Inc. M9999-082306 hbwhelp@micrel. com or (408) 955-1690 1
