SY58606U Datasheet, Buffer, Microchip

SY58606U Features

  • Buffer
  • Precision 1:2, 400 mV CML Fanout Buffer
  • Guaranteed AC Performance over Temperature and Voltage: - DC-to >4.25 Gbps Throughput - <320 ps Propagation Delay (IN-to-Q) -

PDF File Details

Part number:

SY58606U

Manufacturer:

Microchip ↗

File Size:

2.12MB

Download:

📄 Datasheet

Description:

1:2 cml fanout buffer. The SY58606U is a 2.5/3.3V, high-speed, fully differential 1:2 CML fanout buffer optimized to provide two identical output copies wit

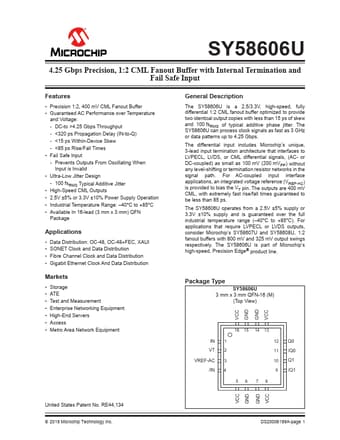

Datasheet Preview: SY58606U 📥 Download PDF (2.12MB)
Page 2 of SY58606U Page 3 of SY58606U

SY58606U Application

  • Applications
  • Data Distribution: OC-48, OC-48+FEC, XAUI
  • SONET Clock and Data Distribution
  • Fibre Channel Clock and Data
