SY56011R Datasheet - Microchip

SY56011R Low Voltage 1.2V/1.8V/2.5V CML 1:2 Fanout Buffer

The SY56011R is a fully differential, low voltage 1.2V/1.8V/2.5V CML 1:2 Fanout Buffer with input equalization. The SY56011R can process clock signals as fast as 4.5 GHz or data patterns up to 6.4 Gbps. The differential input includes a unique, 3-pin input termination architecture that interfaces to.

SY56011R Features

* 1.2V/1.8V/2.5V CML 1:2 Fanout Buffer

* Equalizes 9, 18, 27 inches of FR4

* Guaranteed AC Performance over Temperature and Voltage: - DC- to > 6.4 Gbps Throughput - DC- to > 4.5 GHz Clock Throughput -

SY56011R-Microchip.pdf

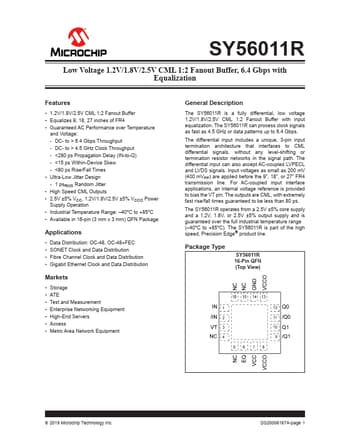

Preview of SY56011R PDF
SY56011R Datasheet Preview Page 2 SY56011R Datasheet Preview Page 3

Datasheet Details

Part number:

SY56011R

Manufacturer:

Microchip ↗

File Size:

1.66 MB

Description:

Low voltage 1.2v/1.8v/2.5v cml 1:2 fanout buffer.
