SY56017R Datasheet - Micrel

Low Voltage 1.2V/1.8V/2.5V CML 2:1 MUX

SY56017R General Description

The SY56017R is a fully differential, low voltage 1.2V/1.8V/2.5V CML 2:1 MUX with input equalization. The SY56017R can process clock signals as fast as 4.5 GHz or data patterns up to 6.4Gbps. The differential input includes Micrel’s unique, 3-pin input termination architecture that interfaces to CM.

SY56017R Datasheet (463.19 KB)

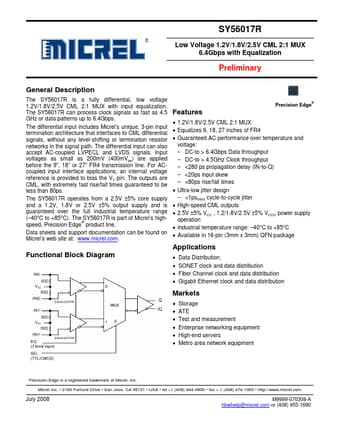

Preview of SY56017R PDF

Datasheet Details

Part number:

SY56017R

Manufacturer:

Micrel

File Size:

463.19 KB

Description:

Low voltage 1.2v/1.8v/2.5v cml 2:1 mux.
