SY56020R Datasheet - Micrel

SY56020R Low Voltage 1.2V/1.8V/2.5V CML 1:4 Fanout Buffer

The SY56020R is a fully differential, low voltage 1.2V/1.8V/2.5V CML 1:4 Fanout Buffer with input equalization. The SY56020R can process clock signals as fast as 4.5GHz or data patterns up to 6.4Gbps. The differential input includes Micrel’s unique, 3-pin input termination architecture that interfac.

SY56020R Features

* 1.2V/1.8V/2.5V CML 1:4 Fanout Buffer

* Equalizes 9, 18, 27 inches of FR4

* Guaranteed AC performance over temperature and voltage:

* DC-to > 6.4Gbps Data throughput

* DC-to > 4.5GHz Clock throughput

SY56020R_Micrel.pdf

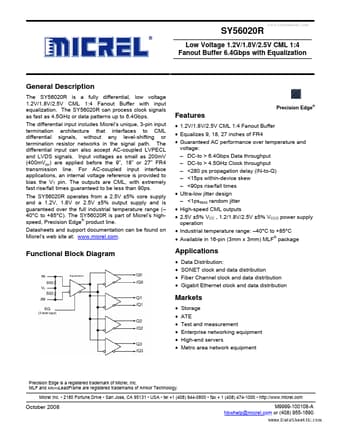

Preview of SY56020R PDF
SY56020R Datasheet Preview Page 2 SY56020R Datasheet Preview Page 3

Datasheet Details

Part number:

SY56020R

Manufacturer:

Micrel

File Size:

456.10 KB

Description:

Low voltage 1.2v/1.8v/2.5v cml 1:4 fanout buffer.
