SY88212L

2.5Gbps Laser Diode Driver

SY88212L Features

* 2.4V minimum laser compliance voltage Operation up to 2.5Gbps Modulation current up to 85mA Bias current up to 70mA Power monitoring Available in 24-pin (4mm x 4mm) MLF® package Applications

* Multi-rate LAN, MAN applications up to

SY88212L General Description

The SY88212L is a single supply 3.3V laser driver for datacom and telecom applications with data rates from 155Mbps up to 2.5Gbps. The driver can deliver modulation current up to 85mA, and provides a high compliance voltage that makes it suitable for high-current operation with the laser DC-coupled .

SY88212L Datasheet (489.01 KB)

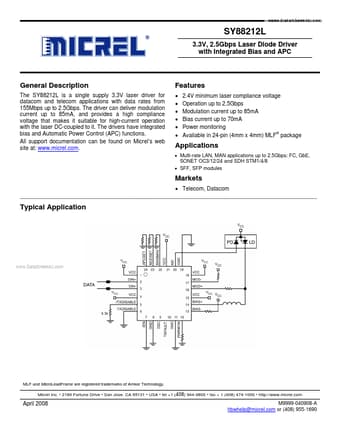

Preview of SY88212L PDF

Datasheet Details

Part number:

SY88212L

Manufacturer:

Micrel Semiconductor

File Size:

489.01 KB

Description:

2.5gbps laser diode driver.
