SY88232L

2.5Gbps Laser Diode Driver

Micrel Semiconductor

SY88232L Features

* ∑ ∑ ∑ ∑ ∑ ∑ ∑ ∑ ∑ 2.4V minimum laser compliance voltage Operation up to 2.5Gbps Integrated APC circuit Modulation current up to 85mA Bias current up to 70mA Bias, Modulation, and power monitoring High input sensitivity post amplifier, 5mVPP Programmable LOS level ® Available in 32-pin (5mm x 5mm) ML

SY88232L General Description

The SY88232L is a single supply 3.3V integrated laser driver and post amplifier for telecom/datacom applications with data rates from 155Mbps up to 2.5Gbps. The driver can deliver modulation current up to 85mA, and provides a high compliance voltage that makes it suitable for highcurrent operation w.

SY88232L Datasheet (919.80 KB)

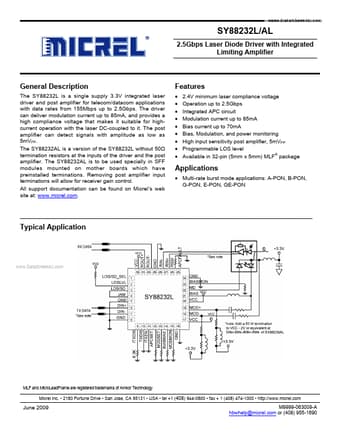

SY88232L Datasheet Preview — Preview of SY88232L PDF

Datasheet Details

Part number:

SY88232L

Manufacturer:

Micrel Semiconductor

File Size:

919.80 KB

Description:

2.5gbps laser diode driver.
