SY88913

HIGH-SPEED LIMITING POST AMPLIFIER

Micrel Semiconductor

SY88913 Features

* Up to 1.25Gbps operation

* Low noise

* Chatter-Free /LOS Generation

* PECL /LOS Output

* TTL /EN Input

* Differential PECL inputs for data

* /EN input is TTL with internal 27K pull-up

* Single power supply

* Designed for use with SY88902 and SY88904

* Availa

SY88913 General Description

The SY88913 limiting post amplifier with its high gain and wide bandwidth is ideal for use as a post amplifier in fiber-optic receivers with data rates up to 1.25Gbps. Signals as small as 5mVp-p can be amplified to drive devices with PECL inputs. The SY88913 generates a chatter-free PECL Loss of Sig.

SY88913 Datasheet (86.58 KB)

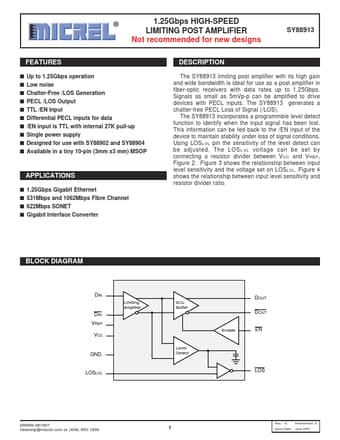

SY88913 Datasheet Preview — Preview of SY88913 PDF

Datasheet Details

Part number:

SY88913

Manufacturer:

Micrel Semiconductor

File Size:

86.58 KB

Description:

High-speed limiting post amplifier.
