SY88913V

HIGH-SPEED LIMITING POST AMPLIFIER

Micrel Semiconductor

SY88913V Features

* 3.3V and 5V power supply options

* Up to 1.5Gbps operation

* Low power

* Low noise

* Chatter-Free /LOS Generation

* PECL /LOS Output

* TTL /EN Input

* Differential PECL inputs for data

* /EN input is TTL with internal 27K pull up

* Single power sup

SY88913V General Description

The SY88913V limiting post amplifier with its high gain and wide bandwidth is ideal for use as a post amplifier in fiber-optic receivers with data rates up to 1.5Gbps. Signals as small as 5mVp-p can be amplified to drive devices with PECL inputs. The SY88913V generates a chatter-free PECL Loss of Si.

SY88913V Datasheet (334.10 KB)

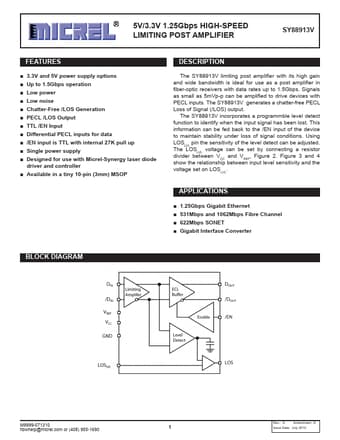

SY88913V Datasheet Preview — Preview of SY88913V PDF

Datasheet Details

Part number:

SY88913V

Manufacturer:

Micrel Semiconductor

File Size:

334.10 KB

Description:

High-speed limiting post amplifier.
