LASER DIODE DRIVER

SY88922V Features

* Up to 2.5Gbps operation 30mA modulation current Separate modulation control Separate output enable for laser safety Differential inputs for data 75KΩ input pull-down resistor 3.3V and 5V power supply options Available in a tiny 10-pin (3mm × 3mm) MSOP

SY88922V General Description

The SY88922V is a high-speed current switch for driving a semiconductor laser diode in optical transmission applications. The modulation current (IOUT) is controlled by the current (IRSET) through the external resistor RSET. The output OUT is HIGH when output enable is HIGH. The device incorporates .

SY88922V Datasheet (481.61 KB)

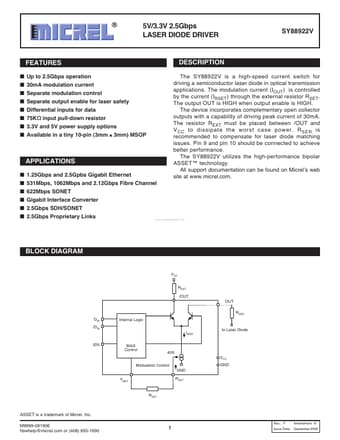

SY88922V Datasheet Preview — Preview of SY88922V PDF

Datasheet Details

Part number:

SY88922V

Manufacturer:

Micrel Semiconductor

File Size:

481.61 KB

Description:

Laser diode driver.
