SY88923

HIGH-SPEED LIMITING POST AMPLIFIER

Micrel Semiconductor

SY88923 Features

* Up to 2.5Gbps operation

* Low noise

* Chatter-Free LOS generation

* Open Collector TTL LOS output

* TTL /EN Input

* Differential PECL inputs for data

* Single power supply

* Designed for use with SY88922 and SY88904 or SY88905

* Available in a tiny 10-pin (3mm)

SY88923 General Description

The SY88923 limiting post amplifier with its high gain and wide bandwidth is ideal for use as a post amplifier in fiber-optic receivers with data rates up to 2.5Gbps. Signals as small as 5mVp-p can be amplified to drive devices with PECL inputs. The SY88923 generates a chatter-free Loss of Signal (.

SY88923 Datasheet (102.93 KB)

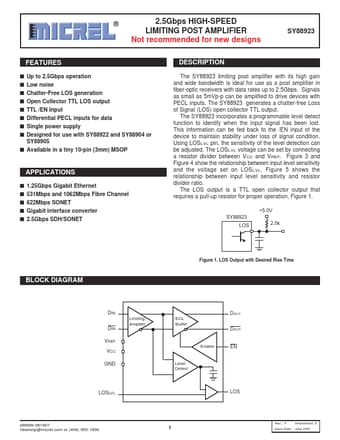

SY88923 Datasheet Preview — Preview of SY88923 PDF

Datasheet Details

Part number:

SY88923

Manufacturer:

Micrel Semiconductor

File Size:

102.93 KB

Description:

High-speed limiting post amplifier.
