SY88992L Datasheet - Micrel Semiconductor

SY88992L VCSEL Driver

The SY88992L is a single supply 3.3V, low power consumption, small-form factor VCSEL driver ideal for use in datacom applications; Ethernet, GbE (Gigabit Ethernet), and FC (Fibre Channel) applications that operate from 100Mbps up to 4.25Gbps. The modulation current is set by applying an external vol.

SY88992L Features

* an adjustable peaking option with variable amplitude and duration to improve VCSEL edge response. The driver can deliver modulation current up to 25mA and a peaking current up to 35% of the modulation current. This device is intended to be used with Micrel’s MIC3001 Optical Transceiver Management IC

SY88992L Datasheet (639.45 KB)

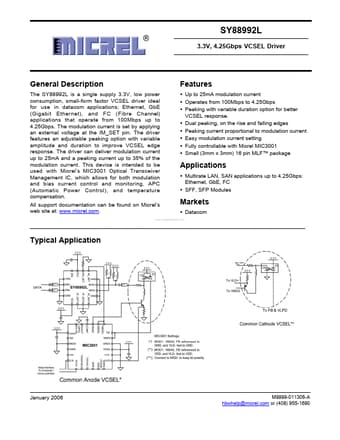

Preview of SY88992L PDF

Datasheet Details

Part number:

SY88992L

Manufacturer:

Micrel Semiconductor

File Size:

639.45 KB

Description:

Vcsel driver.
