SY88993AL

3.3V 3.2Gbps High-Speed Limiting Post Amplifier

Micrel Semiconductor

SY88993AL Features

* Up to 3.2Gbps operation

* Low noise CML data outputs

* Chatter-Free LOS generation

* Open Collector TTL LOS output

* TTL /EN Input

* Differential PECL inputs for data

* Single 3.3V power supply

* Available in a tiny 10-pin (3mm x 3mm)

SY88993AL General Description

The SY88993AL limiting post amplifier, with its wide bandwidth, is ideal for use as a post amplifier in fiber-optic receivers with data rates up to 3.2Gbps. Signals as small as 4mVPP can be amplified to drive devices with CML inputs or AC-coupled PECL inputs. The SY88993AL generates a chatter-free L.

SY88993AL Datasheet (367.05 KB)

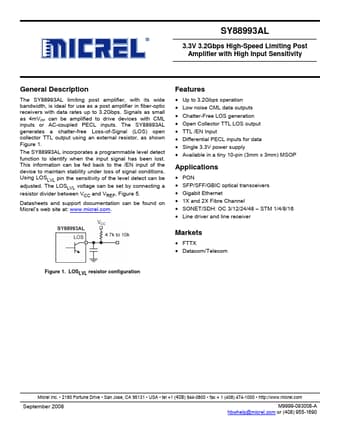

SY88993AL Datasheet Preview — Preview of SY88993AL PDF

Datasheet Details

Part number:

SY88993AL

Manufacturer:

Micrel Semiconductor

File Size:

367.05 KB

Description:

3.3v 3.2gbps high-speed limiting post amplifier.
