ME3113B Datasheet - Micro Electronics

ME3113B BLUE SIDE BACKLIGHT

www.DataSheet4U.com MICRO ELECTRO NICS ME3113B BLUE SIDE BACKLIGHT FOR LCD DISPLAY ABSOLUTE MAXIMUM RATINGS Power Dissipation Continuous Forward Current Reverse Voltage Operating Temperature Range Storage Temperature Range Pd IF VR Topr Tstg 120mW 30mA 10V -20 to +70°C -25 to +75°C ELECTRO-OPTICAL CHARACTERISTICS (CHIP) PARAMETER Forward Voltage Reverse Current Dominant Wavelength Spectral Line Half Width SYMBOL VF IR λd Δλ 465 30 MIN TYP 3.3 (Ta=25°C) MAX 3.5 100 470 UNIT V μA nm nm COND.

ME3113B_MicroElectronics.pdf

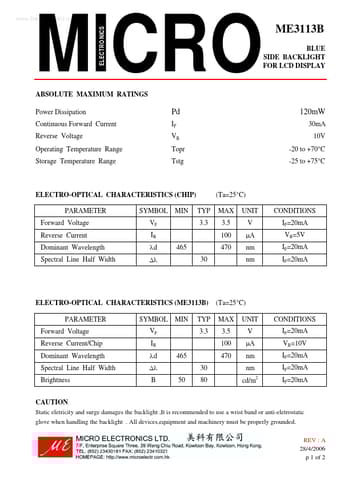

Preview of ME3113B PDF
ME3113B Datasheet Preview Page 2

Datasheet Details

Part number:

ME3113B

Manufacturer:

Micro Electronics

File Size:

78.63 KB

Description:

Blue side backlight.
