ME3101A12 Datasheet - Microne

500mA Synchronous Step-Down DC/DC Converters

ME3101A12 General Description

ME3101 series is a group of synchronous rectification type DC/DC converters with a built-in 0.6Ω P-channel driver transistor and 0.7Ω N-channel switching transistor, designed to allow the use of ceramic capacitors. The ICs enable a high efficiency, stable power supply with an output current of 500m.

ME3101A12 Datasheet (522.54 KB)

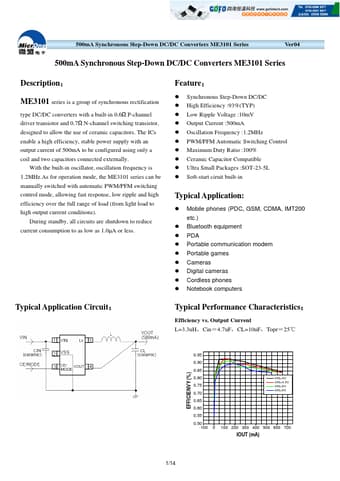

Preview of ME3101A12 PDF

Datasheet Details

Part number:

ME3101A12

Manufacturer:

Microne

File Size:

522.54 KB

Description:

500ma synchronous step-down dc/dc converters.
