ME3101 - 500mA Synchronous Step-Down DC/DC Converters

📥 Download Datasheet

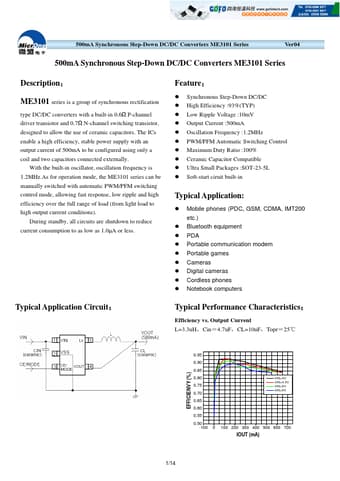

Preview of ME3101 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ME3101
Manufacturer
Microne
File Size
522.54 KB
Datasheet
ME3101-Microne.pdf
Description
500mA Synchronous Step-Down DC/DC Converters

ME3101 Product details

Description

ME3101 series is a group of synchronous rectification type DC/DC converters with a built-in 0.6Ω P-channel driver transistor and 0.7Ω N-channel switching transistor, designed to allow the use of ceramic capacitors.The ICs enable a high efficiency, stable power supply with an output current of 500mA to be configured using only a coil and two capacitors connected externally.With the built-in oscillator, oscillation frequency is 1.2MHz.As for operation mode, the ME3101 series can be manually swi
