ML4810

High Frequency Power Supply Controller

ML4810 Features

* not found on the 1825. These features are set in Italics. FEATURES s s s s s s s s s s s Integrating Soft Start Reset High current (2A peak) dual totem pole outputs Practical operation to 1MHz (fOSC) 5.1V ± 2% trimmed bandgap reference Under voltage lockout with 7V hysteresis Soft Start Reset Dela

ML4810 General Description

The ML4810 and ML4811 High Frequency PWM Controllers are optimized for use in Switch Mode Power Supply designs running at frequencies to 1MHz. The ML4810/11 contain a unique overload protection circuit which helps to limit stress on the output devices and reliably performs a soft-start reset. These .

ML4810 Datasheet (165.07 KB)

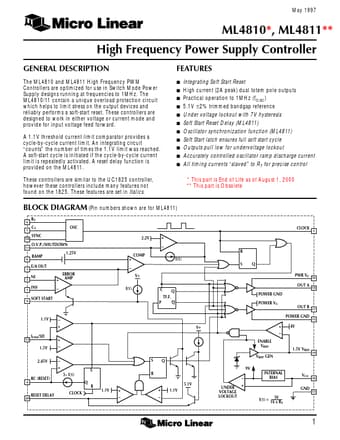

Preview of ML4810 PDF

Datasheet Details

Part number:

ML4810

Manufacturer:

Micro Linear

File Size:

165.07 KB

Description:

High frequency power supply controller.
