ML4801 - Variable Feedforward PFC/PWM Controller Combo

ML4801 Description

March 2001 PRELIMINARY ML4801 Variable Feedforward PFC/PWM Controller Combo GENERAL .
The ML4801 is a controller for power factor corrected, switched mode power supplies.

ML4801 Features

* of this combined PFC and PWM controller are low start-up and operating currents. Power Factor Correction (PFC) allows the use of smaller, lower cost bulk capacitors, reduces power line loading and stress on the switching FETs, and results in a power supply that fully complies with IEC1000-2-3 specif

📥 Download Datasheet

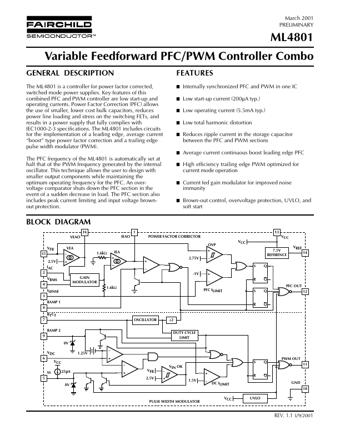

Preview of ML4801 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ML4801
Manufacturer
Fairchild
File Size
160.61 KB
Datasheet
ML4801_FairchildSemiconductor.pdf
Description
Variable Feedforward PFC/PWM Controller Combo
