ML4813 - Flyback Power Factor Controller

ML4813 Description

April 1997 ML4813 * Flyback Power Factor Controller GENERAL .
The ML4813 is a PWM controller designed for use in a discontinuous "flyback" or "buck-boost" type power factor correction (PFC) system for low power,.

ML4813 Features

* s s Precision buffered 5V reference Extra op-amp for output voltage instrumentation amplifier Overcurrent comparator for switch protection Soft start and under-voltage lockout for easy low surge off-line starting 1A peak current Totem-pole output drive Overvoltage comparator eliminates output "runa

ML4813 Applications

* The circuit includes a precision reference, oscillator, error amplifier, over-voltage comparator, over-current comparator, and an extra op-amp as well as a high current output. In addition, start-up is simplified by an under-voltage lockout circuit. In a typical application, the ML4813 functions as

📥 Download Datasheet

Preview of ML4813 PDF

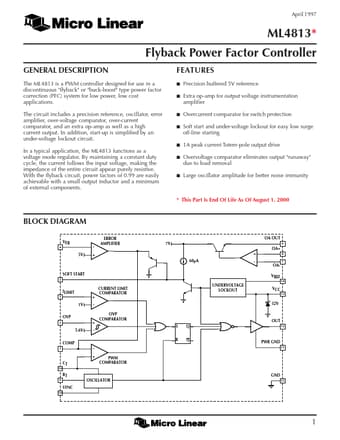

datasheet Preview Page 2 datasheet Preview Page 3
