ML4819

Power Factor and PWM Controller Combo

Micro Linear

ML4819 Features

* s s s s s s s s s Two 1A peak current totem-pole output drivers Precision buffered 5V reference (±1%) Large oscillator amplitude for better noise immunity Precision duty cycle limit for PWM section Current input gain modulator improves noise immunity Programmable Ramp Compensation circuit Over-Volt

ML4819 General Description

The ML4819 is a complete boost mode Power factor Controller (PFC) which also contains a PWM controller. The PFC circuit is similar to the ML4812 while the PWM controller can be used for current or voltage mode control for a second stage converter. Since the PWM and PFC circuits share the same oscill.

ML4819 Datasheet (290.06 KB)

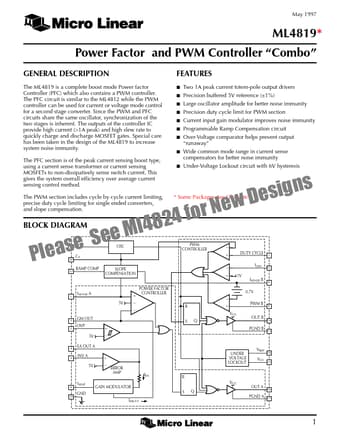

ML4819 Datasheet Preview — Preview of ML4819 PDF

Datasheet Details

Part number:

ML4819

Manufacturer:

Micro Linear

File Size:

290.06 KB

Description:

Power factor and pwm controller combo.
