A100HI 1.5W Single & Dual Output DC/DC Converters

A100HI Description

A100HI Series Ultra-High Isolation, 1.5W Single & Dual Output DC/DC Converters Electrical Specifications Specifications typical @ +25°C, nominal input v.

A100HI Features

* 1.5W Output Power
* 8,000 VDC Isolation
* 2 µA Leakage Current Max
* Compact DIP Case
* Single & Dual Outputs
* Meets EN55022 Class A
* 1.0 MH MTBF
* Industry Standard Pin-Out Input Parameter Input Voltage Range Input Filter Reverse

A100HI Applications

* the use of 1.5 µF capacitors will reduce the output ripple. 2. Transient recovery is measured to within a 1% error band for a load step change of 50% to 100%. 3. Dual output units may be connected to provide a 10 VDC, 24 VDC or 30 VDC output. To do this, connect the load across the positive (+Vout)

📥 Download Datasheet

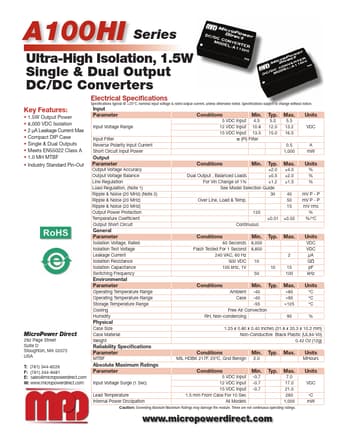

Preview of A100HI PDF
datasheet Preview Page 2

Datasheet Details

Part number
A100HI
Manufacturer
MicroPower Direct
File Size
258.20 KB
Datasheet
A100HI_MicroPowerDirect.pdf
Description
1.5W Single & Dual Output DC/DC Converters
