A100UHI - Ultra High Isolation

MicroPower Direct

Key Features

1W Output Power.
12,000 VDC Isolation.
Short Circuit Protection.
High Efﬁciency.
Compact DIP Case.
Single & Dual Outputs.
Meets EN55022.
1.0 MH MTBF Input Parameter Input Voltage Range Input Filter Conditions Min. Typ. 10.8 12.0 Internal Capacitor Min. Typ. ±2.5 Max. 13.2 Units VDC Output Parameter Output Voltage Accuracy Line Regulation Load Regulation Ripple & Noise (20 MHz) Maximum Capacitive Load Temperature Coefﬁcie.

A100UHI ultra high isolation by MicroPower Direct - Datasheet Preview

Datasheet Details

Part number	A100UHI
Manufacturer	MicroPower Direct
File Size	312.71 KB
Description	Ultra High Isolation
Datasheet	A100UHI Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
A1002	Silicon PNP Power Transistor	INCHANGE
A1006	2SA1006	SavantIC
A1006	Secure Authenticator IC	NXP
A1008	2SA1008	SavantIC
A1009	2SA1009	NEC

Other Datasheets by MicroPower Direct

Part Number	Description
A100EHI	Very High Isolation DC/DC Converters
A100ERU	1.5W Ultra-Wide Input Range DC/DC Converters
A100HI	1.5W Single & Dual Output DC/DC Converters

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

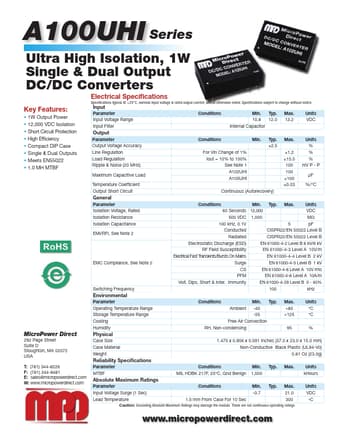

A100UHI Series Ultra High Isolation, 1W Single & Dual Output DC/DC Converters Electrical Speciﬁcations Speciﬁcations typical @ +25°C, nominal input voltage & rated output current, unless otherwise noted. Speciﬁcations subject to change without notice. Key Features: • 1W Output Power • 12,000 VDC Isolation • Short Circuit Protection • High Efﬁciency • Compact DIP Case • Single & Dual Outputs • Meets EN55022 • 1.0 MH MTBF Input Parameter Input Voltage Range Input Filter Conditions Min. Typ. 10.8 12.0 Internal Capacitor Min. Typ. ±2.5 Max. 13.
