D116EI, D111EI, (D111EI Series) High Isolation SIP DC/DC Converters

D100EI Series Low Cost, 1W High Isolation SIP DC/DC Converters Electrical Speciﬁcations Speciﬁcations typical @ +25°C, nominal input voltage & rated o.

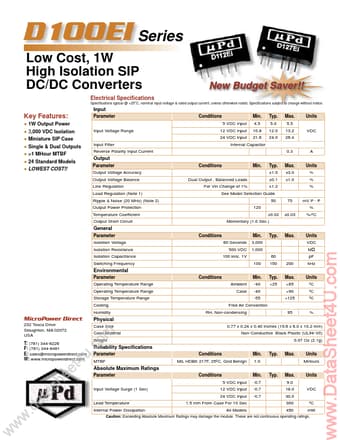

datasheet Preview Page 1 from Datasheet4u.com

D111EI_MicroPowerDirect.pdf

D116EI Datasheet Preview — This datasheet PDF includes multiple part numbers: D116EI, D111EI. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

D116EI, D111EI

Manufacturer:

MicroPower Direct

File Size:

134.07 KB

Description:

(D111EI Series) High Isolation SIP DC/DC Converters

Note:

This datasheet PDF includes multiple part numbers: D116EI, D111EI.
Please refer to the document for exact specifications by model.

Features

* 1W Output Power
* 3,000 VDC Isolation
* Miniature SIP Case
* Single & Dual Outputs
* >1 MHour MTBF
* 24 Standard Models
* LOWEST COST!! Parameter Input Voltage Range Input Filter Reverse Polarity Input Current Internal Capacitor Output Parameter Output Voltage Accur

Applications

* requiring very low output noise levels, a simple LC ﬁlter should be effective. 4. Dual output units may be connected to provide a 10V, 18V, 24V or 30 VDC output. To do this, connect the load across the positive (+Vout) and negative (-Vout) outputs and ﬂoat the output common 5. It is recommended that
