MCP3001 Datasheet - Microchip Technology

MCP3001 2.7V 10-Bit A/D Converter

The Microchip Technology Inc. MCP3001 is a successive approximation 10-bit A/D converter (ADC) with onboard sample and hold circuitry. The device provides a single pseudo-differential input. Differential Nonlinearity (DNL) and Integral Nonlinearity (INL) are both specified at ±1 LSB max. Communicati.

MCP3001 Features

* 10-bit resolution

* ±1 LSB max DNL

* ±1 LSB max INL

* On-chip sample and hold

* SPI™ serial interface (modes 0,0 and 1,1)

* Single supply operation: 2.7V - 5.5V

* 200 ksps sampling rate at 5V

* 75 ksps sampling rate at 2.7V

MCP3001_MicrochipTechnology.pdf

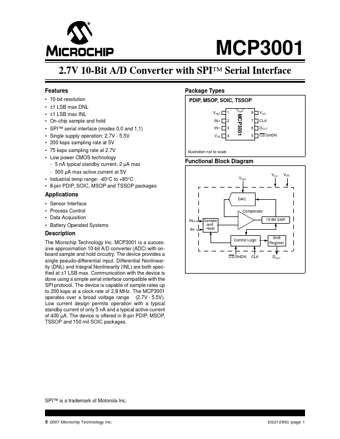

Preview of MCP3001 PDF
