MCP3004 2.7V 4-Channel/8-Channel 10-Bit A/D Converters

Microchip Technology

Description

MCP3004/3008 2.7V 4-Channel/8-Channel 10-Bit A/D Converters with SPI Serial Interface .
The Microchip Technology Inc.

📥 Download Datasheet

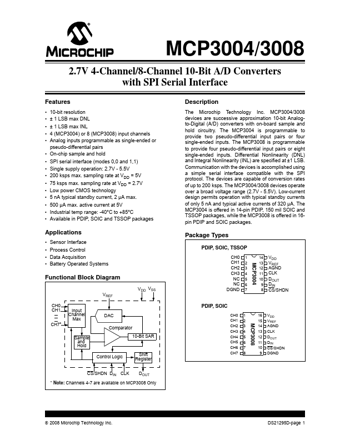

MCP3004 Datasheet Preview — Preview of MCP3004 PDF

Datasheet Specifications

Part number: MCP3004
Manufacturer: Microchip ↗ Technology
File Size: 592.19 KB
Datasheet: MCP3004_MicrochipTechnology.pdf
Description: 2.7V 4-Channel/8-Channel 10-Bit A/D Converters

Features

* 10-bit resolution
* ± 1 LSB max DNL
* ± 1 LSB max INL
* 4 (MCP3004) or 8 (MCP3008) input channels
* Analog inputs programmable as single-ended or pseudo-differential pairs
* On-chip sample and hold
* SPI serial interface (modes 0,0 and 1,1)

Applications

* Sensor Interface
* Process Control
* Data Acquisition
* Battery Operated Systems Functional Block Diagram VREF VDD VSS CH0 CH1 CH7
* Input Channel Max Sample and Hold DAC Comparator 10-Bit SAR Control Logic Shift Register CS/SHDN DIN CLK DOUT
* Not
