MCP3008 Datasheet - Microchip Technology

MCP3008 2.7V 4-Channel/8-Channel 10-Bit A/D Converters

The Microchip Technology Inc. MCP3004/3008 devices are successive approximation 10-bit Analogto-Digital (A/D) converters with on-board sample and hold circuitry. The MCP3004 is programmable to provide two pseudo-differential input pairs or four single-ended inputs. The MCP3008 is programmable to pro.

MCP3008 Features

* 10-bit resolution

* ± 1 LSB max DNL

* ± 1 LSB max INL

* 4 (MCP3004) or 8 (MCP3008) input channels

* Analog inputs programmable as single-ended or pseudo-differential pairs

* On-chip sample and hold

* SPI serial interface (modes 0,0 and 1,1)

MCP3008_MicrochipTechnology.pdf

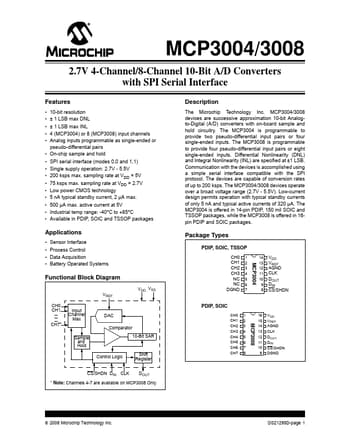

Preview of MCP3008 PDF
