PIC12C508 - 8-Pin/ 8-Bit CMOS Microcontrollers

Product Overview

Microchip Technology

Datasheet Details

Part number	PIC12C508
Manufacturer	Microchip Technology
File Size	788.58 KB
Description	8-Pin/ 8-Bit CMOS Microcontrollers
Datasheet	PIC12C508 Datasheet

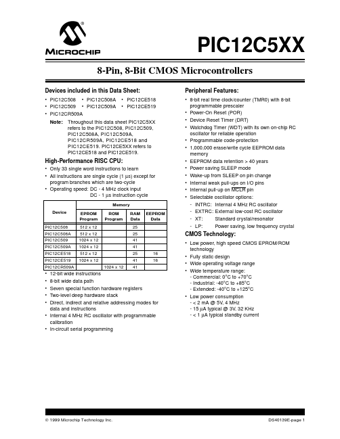

Additional preview pages of the PIC12C508 datasheet.

Product details

Description

4 2.0 PIC12C5XX Device Varieties 7 3.0 Architectural Overview 9 4.0 Memory Organization 13 5.0 I/O Port 21 6.0 Timer0 Module and TMR0 Register 25 7.0 EEPROM Peripheral Operation 29 8.0 Special

Features

8-bit real time clock/counter (TMR0) with 8-bit programmable prescaler.
Power-On Reset (POR).
Device Reset Timer (DRT).
Watchdog Timer (WDT) with its own on-chip RC oscillator for reliable operation.
Programmable code-protection.
1,000,000 erase/write cycle EEPROM data memory.
EEPROM data retention > 40 years.
Power saving SLEEP mode.
Wake-up from SLEEP on pin change.
Internal weak pull-ups on I/O pins.
