PIC12C509T - 8-Pin/ 8-Bit CMOS Microcontroller

Product Overview

Microchip Technology

Datasheet Details

Part number	PIC12C509T
Manufacturer	Microchip Technology
File Size	1.57 MB
Description	8-Pin/ 8-Bit CMOS Microcontroller
Datasheet	PIC12C509T Datasheet
Note	This datasheet PDF includes multiple part numbers: PIC12C509T, PIC-12C. Please refer to the document for exact specifications by model.

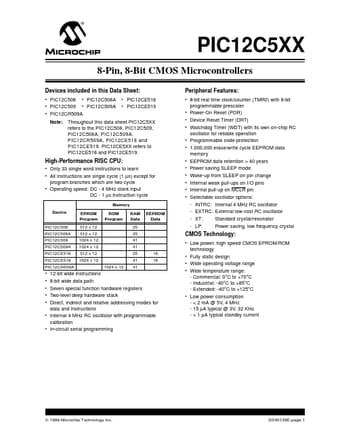

Additional preview pages of the PIC12C509T datasheet.

Product details

Description

4 PIC12C5XX Device Varieties 7 Architectural Overview 9 Memory Organization 13 I/O Port 21 Timer0 Module and TMR0 Register 25 EEPROM Peripheral Operation 29 Special

Features

8-bit real time clock/counter (TMR0) with 8-bit programmable prescaler.
Power-On Reset (POR).
Device Reset Timer (DRT).
Watchdog Timer (WDT) with its own on-chip RC oscillator for reliable operation.
Programmable code-protection.
1,000,000 erase/write cycle EEPROM data memory.
EEPROM data retention > 40 years.
Power saving SLEEP mode.
Wake-up from SLEEP on pin change.
Internal weak pull-ups on I/O pins.
