PIC14000 28-Pin Programmable Mixed Signal Controller

PIC14000 28-Pin Programmable Mixed Signal Controller High-Performance RISC CPU: Only 35 single word instructions to learn All single cycle instructions except for program branches which are two cycle Operating speed: DC - 20 MHz clock input 4096 x 14 on-chip EPROM program memory 192 x 8 general purpose registers (SRAM) 6 internal and 5 external interrupt sources 38 special function hardware registers Eight-level hard.

PIC14000 Features

* Slope Analog-to-Digital (A/D) converter - Eight external input channels including two channels with selectable level shift inputs - Six internal input channels - 16-bit programmable timer with capture register - 16 ms maximum conversion time at maximum (16-bit) resolution and 4 MHz clock

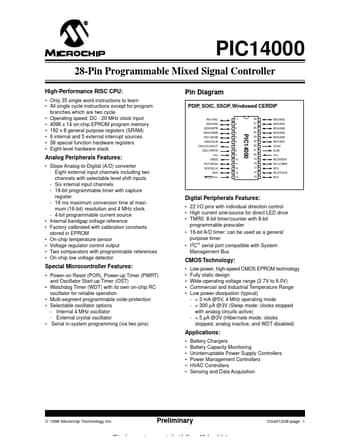

PIC14000 Datasheet (953.49 KB)
