PIC16F1518, PIC16F1516 28/40/44-Pin Flash Microcontroller

Microchip Technology

Description

PIC16(L)F1516/7/8/9 28/40/44-Pin Flash Microcontrollers with XLP Technology Devices Included In This Data Sheet * PIC16F1516 * PIC16.

📥 Download Datasheet

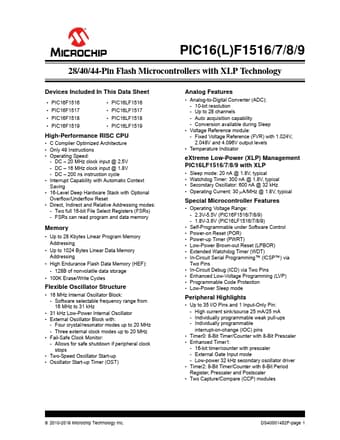

PIC16F1518 Datasheet Preview — This datasheet PDF includes multiple part numbers: PIC16F1518, PIC16F1516. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: PIC16F1518, PIC16F1516
Manufacturer: Microchip ↗ Technology
File Size: 4.22 MB
Datasheet: PIC16F1516_MicrochipTechnology.pdf
Description: 28/40/44-Pin Flash Microcontroller
Note: This datasheet PDF includes multiple part numbers: PIC16F1518, PIC16F1516.
Please refer to the document for exact specifications by model.

Features

* Analog-to-Digital Converter (ADC): - 10-bit resolution - Up to 28 channels - Auto acquisition capability - Conversion available during Sleep
* Voltage Reference module: - Fixed Voltage Reference (FVR) with 1.024V, 2.048V and 4.096V output levels
* Temperature Indicator eXtr
