PIC16F1507 Datasheet - Microchip

PIC16F1507 8-Bit Microcontrollers

PIC16(L)F1507 20-Pin Flash, 8-Bit Microcontrollers High-Performance RISC CPU: C Compiler Optimized Architecture Only 49 Instructions Operating Speed: - DC 20 MHz clock input - DC 200 ns instruction cycle Interrupt Capability with Automatic Context Saving 16-Level Deep Hardware Stack with Optional Overflow/Underflow Reset Direct, Indirect and Relative Addressing modes: - Two full 16-bit File Select Registers (FSRs) .

PIC16F1507 Features

* Operating Voltage Range: - 1.8V to 3.6V (PIC16LF1507) - 2.3V to 5.5V (PIC16F1507)

* Self-Programmable under Software Control

* Power-on Reset (POR)

* Power-up Timer (PWRT)

* Programmable Low-Power Brown-out Reset (LPBOR)

* Extended Watchdog Timer (W

PIC16F1507 Datasheet (2.62 MB)

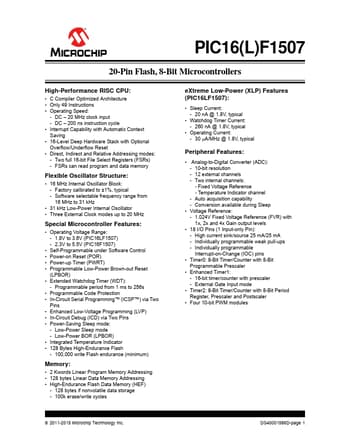

Preview of PIC16F1507 PDF
PIC16F1507 Datasheet Preview Page 2 PIC16F1507 Datasheet Preview Page 3

Datasheet Details

Part number:

PIC16F1507

Manufacturer:

Microchip ↗

File Size:

2.62 MB

Description:

8-bit microcontrollers.
