24AA02H Datasheet - Microchip

24AA02H - 2K I2C Serial EEPROM

The Microchip Technology Inc. 24XX02H(1) is a 2 Kbit Electrically Erasable PROM (EEPROM). The device is organized as one block of 256 x 8-bit memory with a two-wire serial interface. Its low-voltage design permits operation down to 1.7V with standby and active currents of only 1 A and 1 mA, respect.

24AA02H Features

* Single Supply with Operation down to 1.7V for 24AA02H Devices, 2.5V for 24LC02BH Devices

* Low-Power CMOS Technology: - Read current 1 mA, maximum - Standby current 1 A, maximum (I-temp.)

* 2-Wire Serial Interface, I2C Compatible

* Schmitt Trigger Inputs for Noise

24AA02H-Microchip.pdf

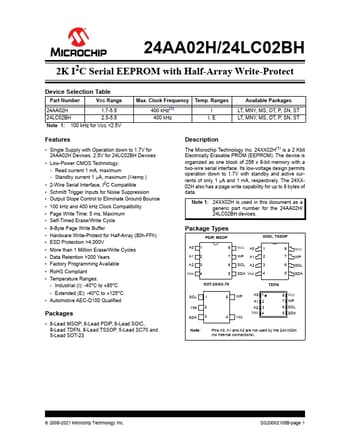

Preview of 24AA02H PDF
24AA02H Datasheet Preview Page 2 24AA02H Datasheet Preview Page 3

Datasheet Details

Part number:

24AA02H

Manufacturer:

Microchip ↗

File Size:

691.25 KB

Description:

2k i2c serial eeprom.
