24AA025, 24AA024 - 2K I2C Serial EEPROM

Microchip Technology

📥 Download Datasheet

24AA025 Datasheet Preview — This datasheet PDF includes multiple part numbers: 24AA025, 24AA024. Please refer to the document for exact specifications by model.

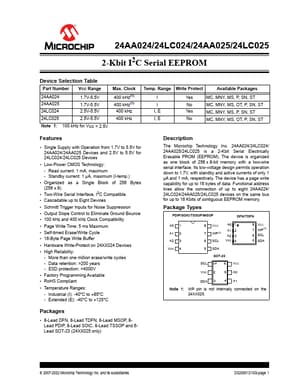

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	24AA025, 24AA024
Manufacturer	Microchip ↗ Technology
File Size	534.21 KB
Description	2K I2C Serial EEPROM
Datasheet	24AA024_MicrochipTechnology.pdf
Note	This datasheet PDF includes multiple part numbers: 24AA025, 24AA024. Please refer to the document for exact specifications by model.

24AA025 Product details

Description

The Microchip Technology Inc.

Features

Single Supply with Operation from 1.7V to 5.5V for 24AA024/24AA025 Devices and 2.5V to 5.5V for 24LC024/24LC025 Devices.
Low-Power CMOS Technology: - Read current: 1 mA, maximum - Standby current: 1 µA, maximum (I-temp. ).
Organized as a Single Block of 256 Bytes (256 x 8).
Two-Wire Serial Interface, I2C Compatible.
Cascadable up to Eight Devices.
Schmitt Trigger Inputs for Noise Suppression.
Output Slope Control to Eliminate Ground.
