24AA00 - 128-Bit I2C Bus Serial EEPROM

Microchip

📥 Download Datasheet

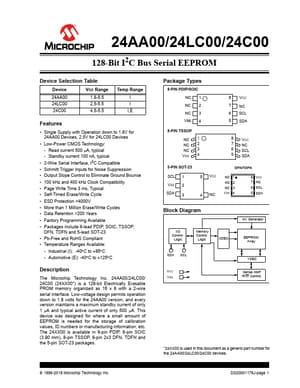

24AA00 Datasheet Preview — Preview of 24AA00 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	24AA00
Manufacturer	Microchip ↗
File Size	538.39 KB
Description	128-Bit I2C Bus Serial EEPROM
Datasheet	24AA00-Microchip.pdf

24AA00 Product details

Description

The Microchip Technology Inc. ) is a 128-bit Electrically Erasable PROM memory organized as 16 x 8 with a 2-wire serial interface.

Features

Single Supply with Operation down to 1.8V for 24AA00 Devices, 2.5V for 24LC00 Devices.
Low-Power CMOS Technology: - Read current 500 A, typical - Standby current 100 nA, typical.
2-Wire Serial Interface, I2C Compatible.
Schmitt Trigger Inputs for Noise Suppression.
Output Slope Control to Eliminate Ground Bounce.
100 kHz and 400 kHz Clock Compatibility.
Page Write Time 3 ms, Typical.
Self-Timed Erase/Write Cycle.
