24AA01 - EEPROM

Microchip

📥 Download Datasheet

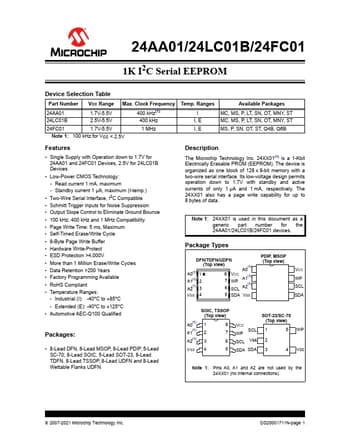

24AA01 Datasheet Preview — Preview of 24AA01 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	24AA01
Manufacturer	Microchip ↗
File Size	0.97 MB
Description	EEPROM
Datasheet	24AA01-Microchip.pdf

24AA01 Product details

Description

The Microchip Technology Inc.

Features

Single Supply with Operation down to 1.7V for 24AA01 and 24FC01 Devices, 2.5V for 24LC01B Devices.
Low-Power CMOS Technology: - Read current 1 mA, maximum - Standby current 1 µA, maximum (I-temp. ).
Two-Wire Serial Interface, I2C Compatible.
Schmitt Trigger Inputs for Noise Suppression.
Output Slope Control to Eliminate Ground Bounce.
100 kHz, 400 kHz and 1 MHz Compatibility.
Page Write Time: 5 ms, Maximum.
Self-Timed Erase/.
