DN2530 Datasheet, Fet, Microchip

DN2530 Features

  • Fet
  • High-input impedance
  • Low-input capacitance
  • Fast switching speeds
  • Low on-resistance
  • Free from secondary breakdown
  • Low input an

PDF File Details

Part number:

DN2530

Manufacturer:

Microchip ↗

File Size:

351.04kb

Download:

📄 Datasheet

Description:

Vertical dmos fet. The DN2530 is a low-threshold, depletion-mode, normally-on transistor that utilizes an advanced vertical DMOS structure and a well-pr

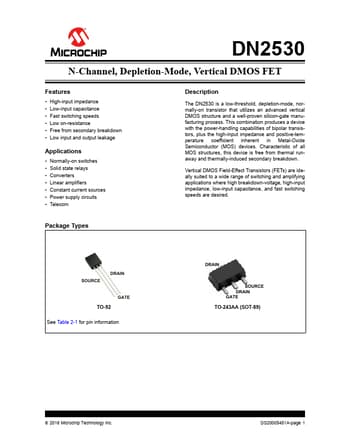

Datasheet Preview: DN2530 📥 Download PDF (351.04kb)
Page 2 of DN2530 Page 3 of DN2530

DN2530 Application

  • Applications
  • Normally-on switches
  • Solid state relays
  • Converters
  • Linear amplifiers
  • Constant current
