Datasheet Details
- Part number
- DN200
- Manufacturer
- AUK
- File Size
- 48.59 KB
- Datasheet
-
DN200-AUK.pdf
- Description
-
NPN Silicon Transistor

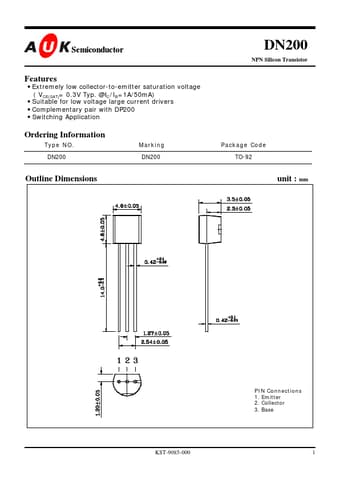

DN200 Product details
Features
- Extremely low collector-to-emitter saturation voltage ( VCE(SAT)= 0.3V Typ. @IC /IB=1A/50mA).
- Suitable for low voltage large current drivers.
- Complementary pair with DP200.
- Switching Application
Ordering Information
Type NO. DN200
Marking DN200
Outline Dimensions
DN200
NPN Silicon Transistor
Package Code TO-92
unit : mm
KST-9085-000
PIN Connections 1. Emitter 2. Collector 3. Base
1
Absolute maximum ratings
Characteristic
Collector-Base voltage Collecto.
