DN2530, N-Channel Depletion-Mode Vertical DMOS FETs

DN2530 N-Channel Depletion-Mode Vertical DMOS FETs Ordering Information BVDSX / BVDGX 300V * Same as SOT-89.RDS(ON) (max) 12Ω IDSS (min) 200mA Or.

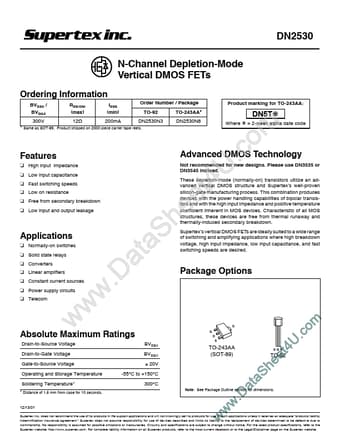

datasheet Preview Page 1 from Datasheet4u.com

DN2530_Supertex.pdf

DN2530 Datasheet Preview — Preview of DN2530 PDF

Datasheet Details

Part number:

DN2530

Manufacturer:

Supertex

File Size:

113.53 KB

Description:

N-Channel Depletion-Mode Vertical DMOS FETs

Features

* ❏ High input impedance ❏ Low input capacitance ❏ Fast switching speeds ❏ Low on resistance ❏ Free from secondary breakdown ❏ Low input and output leakage Advanced DMOS Technology Not recommended for new designs. Please use DN3535 or DN3545 instead. These depletion-mode (normally-on) transistors uti

Applications

* where high breakdown voltage, high input impedance, low input capacitance, and fast switching speeds are desired. Applications ❏ Normally-on switches ❏ Solid state relays ❏ Converters ❏ Linear amplifiers ❏ Constant current sources ❏ Power supply circuits ❏ Telecom Absolute Maximum Ratings Drain-to
