DN200F - NPN Silicon Transistor

AUK

📥 Download Datasheet

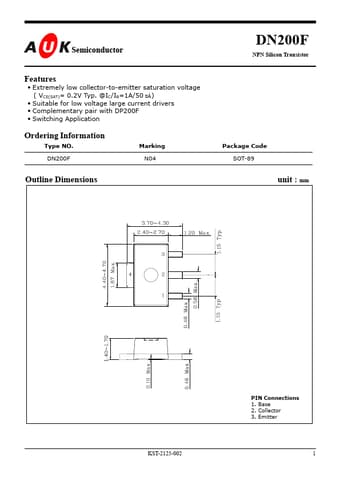

DN200F Datasheet Preview — Preview of DN200F PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: DN200F
Manufacturer: AUK
File Size: 243.79 KB
Datasheet: DN200F-AUK.pdf
Description: NPN Silicon Transistor

DN200F Product details

Features

Extremely low collector-to-emitter saturation voltage ( VCE(SAT)= 0.2V Typ. @IC/IB=1A/50 ㎃).
Suitable for low voltage large current drivers.
Complementary pair with DP200F.
Switching Application Ordering Information Type NO. DN200F Marking N04 Outline Dimensions DN200F NPN Silicon Transistor Package Code SOT-89 unit : mm KST-2125-002 PIN Connections 1. Base 2. Collector 3. Emitter 1 DN200F Absolute maximum ratings Characteristic Symbol Collector-Bas.
