HV2801 - 32-Channel Low-Charge-Injection High-Voltage Analog Switches

HV2801 Description

HV2801/HV2901 32-Channel Low-Charge-Injection High-Voltage Analog Switches .
The HV2801 and HV2901 are 32-channel low-charge-injection high-voltage analog switch integrated circuits (ICs) intended for applications requiring hig.

HV2801 Features

* 32-Channel High-Voltage Analog Switch
* Integrated Bleed Resistors on the Outputs for HV2901
* CMOS Logic Circuitry for Low Power
* 3.3V or 5V CMOS Input Logic Level
* 2:1 Multiplexer/Demultiplexer
* 20 MHz Data Shift Clock Frequency
* 10 µA

HV2801 Applications

* Medical Ultrasound Imaging
* Non-Destructive Testing Metal Flaw Detection
* Piezoelectric Transducer Drivers
* Inkjet Printer Heads

📥 Download Datasheet

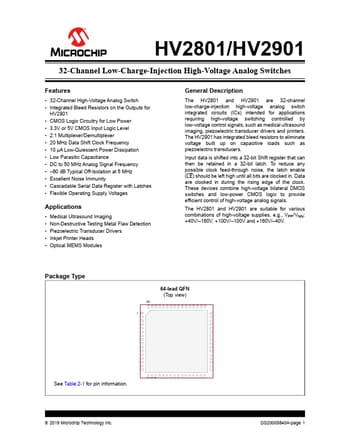

Preview of HV2801 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HV2801
Manufacturer
Microchip ↗
File Size
758.07 KB
Datasheet
HV2801-Microchip.pdf
Description
32-Channel Low-Charge-Injection High-Voltage Analog Switches
