HV2808 - High Voltage Analog Switch

Product Overview

Supertex

Datasheet Details

Part number	HV2808
Manufacturer	Supertex
File Size	359.64 KB
Description	High Voltage Analog Switch
Datasheet	HV2808 Datasheet
Additional preview pages of the HV2808 datasheet.

Product details

Description

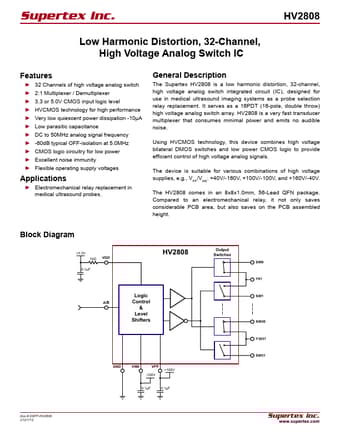

The Supertex HV2808 is a low harmonic distortion, 32-channel, high voltage analog switch integrated circuit (IC), designed for use in medical ultrasound imaging systems as a probe selection relay replacement.

Features

32 Channels of high voltage analog switch.
2:1 Multiplexer / Demultiplexer.
3.3 or 5.0V CMOS input logic level.
HVCMOS technology for high performance.
Very low quiescent power dissipation -10µA.
Low parasitic capacitance.
DC to 50MHz analog signal frequency.
-60dB typical OFF-isolation at 5.0MHz.
CMOS logic circuitry for low power.
Excellent noise immunity.
Flexible operating supply vo.
