ICP0349P - 2.7-3.5GHz 70W GaN PA MMIC

ICP0349P Description

ICP0349P 2.7-3.5GHz 70W GaN PA MMIC .
ICONICRF’s ICP0349 is a 2 stage power amplifier, 50 ohm matched with integrated DC blocking capacitors packaged in a plastic QFN.

ICP0349P Features

* Frequency Range: 2.7-3.5GHz
* Pout: 48 dBm @ 24dBm Pin
* PAE: 60 %
* Small Signal Gain: 26.5dB
* Bias: VD=28V IDQ=200mA
* Technology: GaN on SiC
* Lead-free and RoHS compliant

📥 Download Datasheet

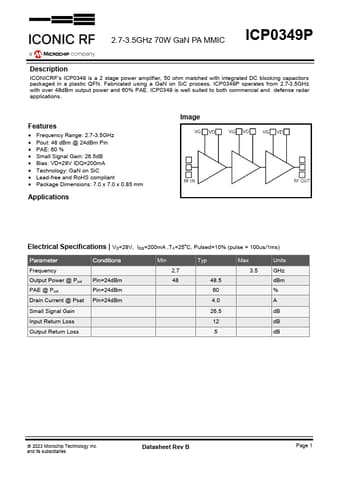

Preview of ICP0349P PDF
datasheet Preview Page 2 datasheet Preview Page 3
