ICP1543 - 12-18GHz 20W GaN PA MMIC

ICP1543 Description

ICP1543 12 * 18 GHz 20W GaN PA MMIC Product Overview Microchip`s ICP1543 is a 3 stage MMIC power amplifier in bare die form, fabricated usin.

ICP1543 Features

* Frequency Range: 12
* 18 GHz
* Pout: 43 dBm @ 24 dBm Pin
* PAE: > 30 %
* Small Signal Gain: 22 dB
* Bias: VD = 24V IDQ = 150 mA
* Technology: GaN on SiC
* Lead
* Free and RoHS compliant
* Die Size = 3.75 mm x 3.45 mm

📥 Download Datasheet

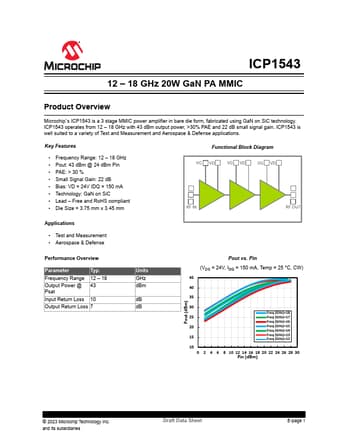

Preview of ICP1543 PDF
