ICP2637 23-31GHz 5W GaN PA MMIC

ICP2637 MMIC 100pF SLC Capacitor 10nF SLC Capacitor 10nF Capacitor,10%,50V,0402 10uF Capacitor,10%,50V,1206 1000pF Capacitor,10%,50V,0402 5.1 ohm resistor, 0402 200Kohm resistor, 0402 © 2023 Microchip Technology Inc. and its subsidiaries Datasheet Rev E Page 4 23-31GHz 5W GaN PA MMIC ICP2637 A.

23-31GHz 5W GaN PA MMIC ICP2637 Product Overview ICONICRF’s ICP2637 is a three stage MMIC power amplif ier in bare die form, f abricated using GaN on SiC technology. The PA operates f rom 23-31GHz with 37dBm output power, 25% PAE and 23dB small signal gain. The die has integrated DC blocking capacitors and is matched to 50ohms on the RF input and output ports. The operating f requency provides flexible operation for a variety of applications including satellite and 5G. The ICP2637P is 100% DC .

ICP2637 Features

* Frequency Range: 23-31GHz

* Pout: 37 dBm @ 19dBm Pin

* PAE: 25 %

* Small Signal Gain: 23dB

* Bias: VD=28V IDQ=84mA

* Technology: GaN on SiC

* Lead-f ree and RoHS compliant

* Integrated Power Detector

* Chip Dimensions: 3.1x1.7

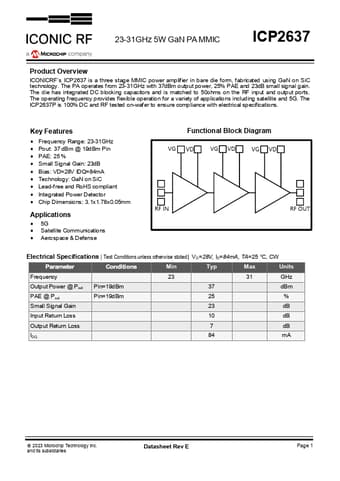

ICP2637 Datasheet (446.52 KB)
