ICP2637P 23-31GHz 5W GaN PA MMIC

23-31GHz 5W GaN PA MMIC ICP2637P Product Overview ICONICRF’s ICP2637P is a three stage MMIC power amplifier in a 5x5mm QFN package, fabricated using GaN on SiC technology. The PA operates from 23-31GHz with 37dBm output power, 25% PAE and 23dB small signal gain. The die has integrated DC blocking capacitors and is matched to 50ohms on the RF input and output ports. The operating frequency provides flexible operation for a variety of applications including satellite and 5G. The ICP2637P is 100% .

ICP2637P Features

* Frequency Range: 23-31GHz

* Pout: 37 dBm @ 19dBm Pin

* PAE: 25 %

* Small Signal Gain: 23dB

* Bias: VD=28V IDQ=84mA

* Technology: GaN on SiC

* Lead-free and RoHS compliant

* Package: = 5mm x 5mm 32 Lead QFN

* Integrated Power D

ICP2637P Datasheet (1.23 MB)

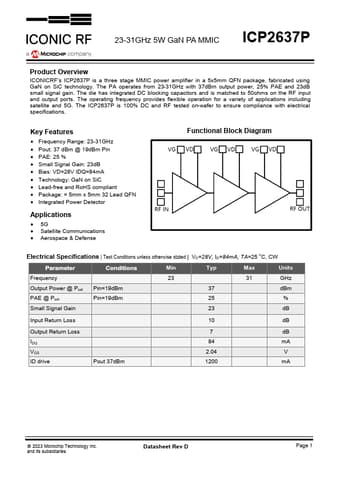

ICP2637P Datasheet Preview — Preview of ICP2637P PDF

Datasheet Details

Part number:

ICP2637P

Manufacturer:

Microchip ↗

File Size:

1.23 MB

Description:

23-31ghz 5w gan pa mmic.
