MCP2003A, MCP2003 - LIN J2602 Transceiver

MCP2003A Description

MCP2003/4/3A/4A LIN J2602 Transceiver .
This device provides a bidirectional, half-duplex communication, physical interface to automotive and industrial LIN systems to meet the LIN Bus Spec.

MCP2003A Features

* The MCP2003/2003A and MCP2004/2004A are compliant with Local Interconnect Network (LIN) Bus Specifications 1.3, 2.0 and 2.1 and are compliant to SAE J2602
* Support Baud Rates up to 20 kbaudwith LIN-Compatible Output Driver
* 43V Load Dump Protected
* Very Low Hig

MCP2003A Applications

* with serial bus speeds up to 20 kbaud. LIN Bus Specification Revision 2.1 requires that the transceiver of all nodes in the system is connected via the LIN pin, referenced to ground and with a maximum external termination resistance load of 510 from LIN bus to battery supply. The 510 corresponds

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MCP2003A, MCP2003. Please refer to the document for exact specifications by model.

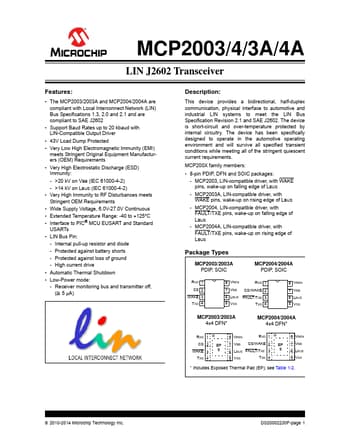

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MCP2003A, MCP2003
Manufacturer
Microchip ↗
File Size
557.59 KB
Datasheet
MCP2003_MicrochipTechnology.pdf
Description
LIN J2602 Transceiver
Note
This datasheet PDF includes multiple part numbers: MCP2003A, MCP2003.
Please refer to the document for exact specifications by model.
