MIC2127A - Synchronous Buck Controller Featuring Adaptive On-Time Control

Datasheet Summary

Description

The MIC2127A device is a constant-frequency synchronous buck controller featuring a unique adaptive on-time control architecture.

The MIC2127A device operates over an input voltage range from 4.5V-75V.

The output voltage is adjustable down to 0.6V with an accuracy of ±1%.

Features

  • Hyper Speed Control® Architecture Enables: - High input to output voltage conversion ratio capability - Any Capacitor™ stable - Ultra-fast load transient response.
  • Wide 4.5V-75V Input Voltage Range.
  • Adjustable Output Voltage from 0.6V to 30V.
  • 270 kHz-800 kHz Programmable Switching Frequency.
  • Built-In 5V Regulator for Single-Supply Operation.
  • Auxiliary Bootstrap LDO for Improving System Efficiency.
  • Internal Bootstrap Diode.

📥 Download Datasheet

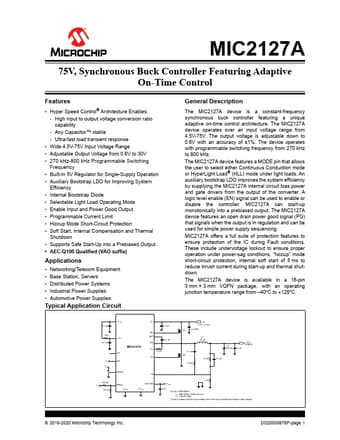

Datasheet preview – MIC2127A

Datasheet Details

Part number MIC2127A
Manufacturer Microchip
File Size 957.38 KB
Description Synchronous Buck Controller Featuring Adaptive On-Time Control
Datasheet download datasheet MIC2127A Datasheet
Additional preview pages of the MIC2127A datasheet.

📁 Similar Datasheet

  • MIC2124 - Synchronous Current Mode Buck Controller (Micrel Semiconductor)
  • MIC2101 - 38V Synchronous Buck Controllers (Micrel Semiconductor)
  • MIC2102 - 38V Synchronous Buck Controllers (Micrel Semiconductor)
  • MIC2103 - Synchronous Buck Controllers (Micrel Semiconductor)
  • MIC2104 - Synchronous Buck Controllers (Micrel Semiconductor)
  • MIC2111 - Single-Phase Multi-Mode High-Performance Step-Down PWM Controller (Micrel Semiconductor)
  • MIC2111B - Step-Down Controller (Micrel Semiconductor)
  • MIC2130 - High Voltage Synchronous Buck Controller (Micrel Semiconductor)
  • MIC2131 - High Voltage Synchronous Buck Controller (Micrel Semiconductor)
  • MIC2141 - Micropower Boost Converter (Micrel Semiconductor)
Other Datasheets by Microchip
  • MIC2125 - 28V Synchronous Buck Controllers
  • MIC2126 - 28V Synchronous Buck Controllers
  • MIC2128 - Synchronous Buck Controller
  • MIC2132 - Advanced COT Buck Controller
  • MIC2133 - Advanced COT Buck Controller
  • MIC2155 - Two-Phase Single-Output PWM Synchronous Buck Controller
  • MIC2171 - 2.5A Switching Regulator
  • MIC2172 - 1.25A Switching Regulators

Full PDF Text Transcription

Click to expand full text
MIC2127A 75V, Synchronous Buck Controller Featuring Adaptive On-Time Control Features • Hyper Speed Control® Architecture Enables: - High input to output voltage conversion ratio capability - Any Capacitor™ stable - Ultra-fast load transient response • Wide 4.5V-75V Input Voltage Range • Adjustable Output Voltage from 0.
